An existing measured survey of a three-storey high-street building on Powis Street, Woolwich — every floor, the roof, a full section and both elevations, drawn accurately in CAD by ARM Design & Build.
A busy high-street building with a commercial ground floor and offices above. Before any change can be designed, you need an accurate record of what already exists.
We measured the building room by room and level by level, then drew it up in CAD as a clean, scaled set of existing drawings.
Pick a drawing, then hover or tap the key to highlight each space. Click any drawing to see it full size.

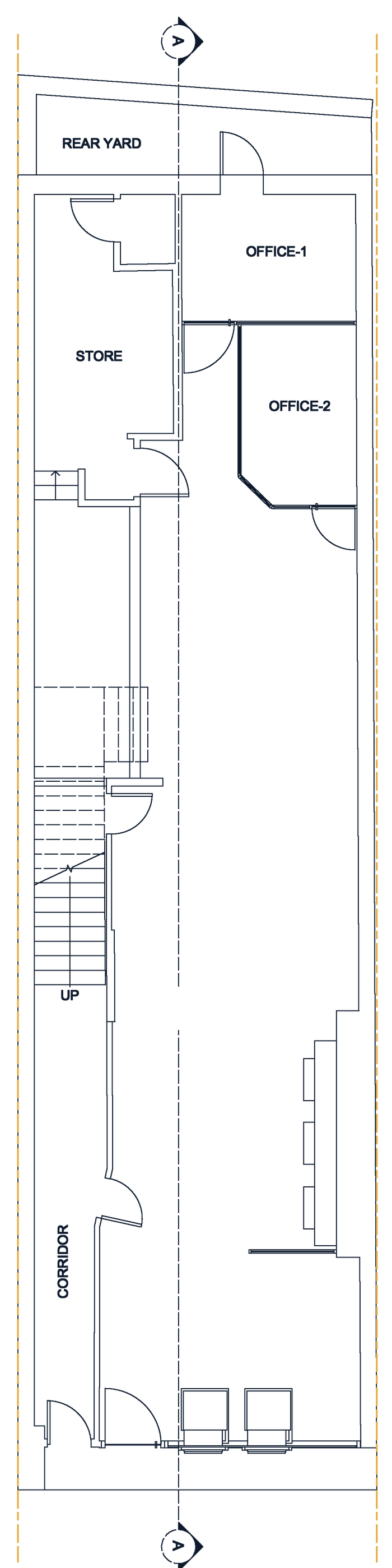

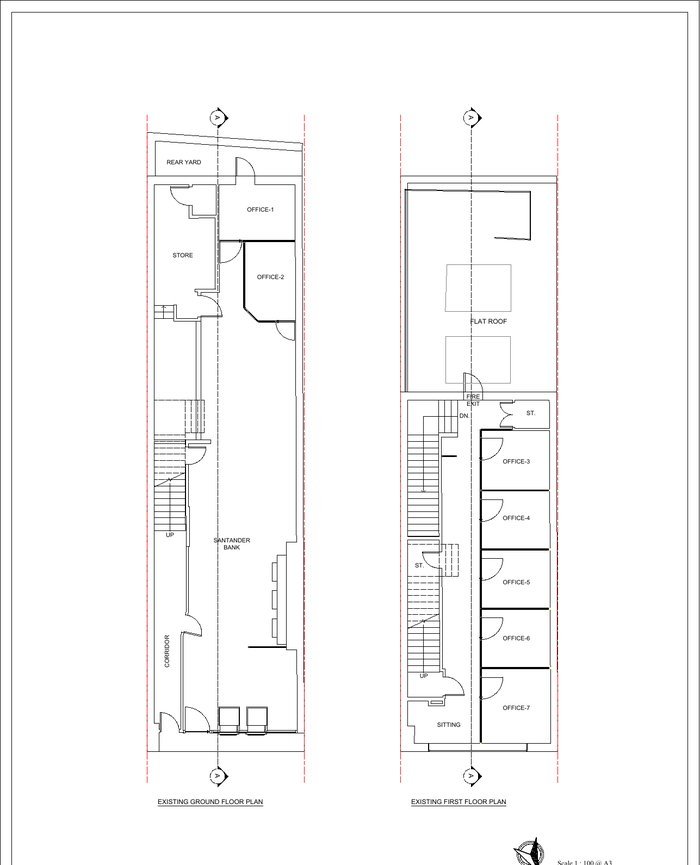

A deep, narrow plot: an open commercial unit at the front, back offices and a store behind, and a yard at the rear.

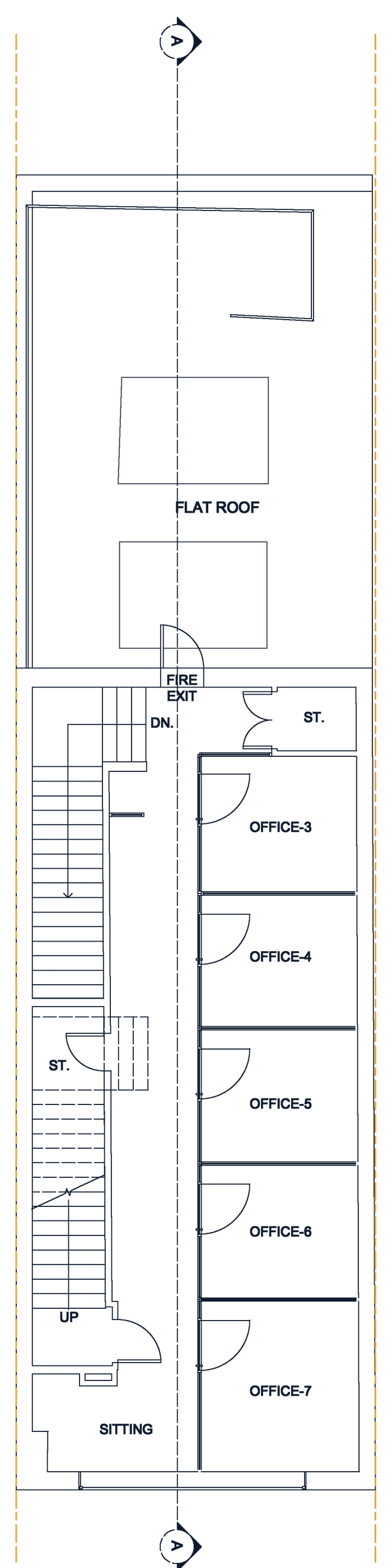

Five offices line one side of the floor, with the main stair on the other and a fire exit out onto the flat roof.

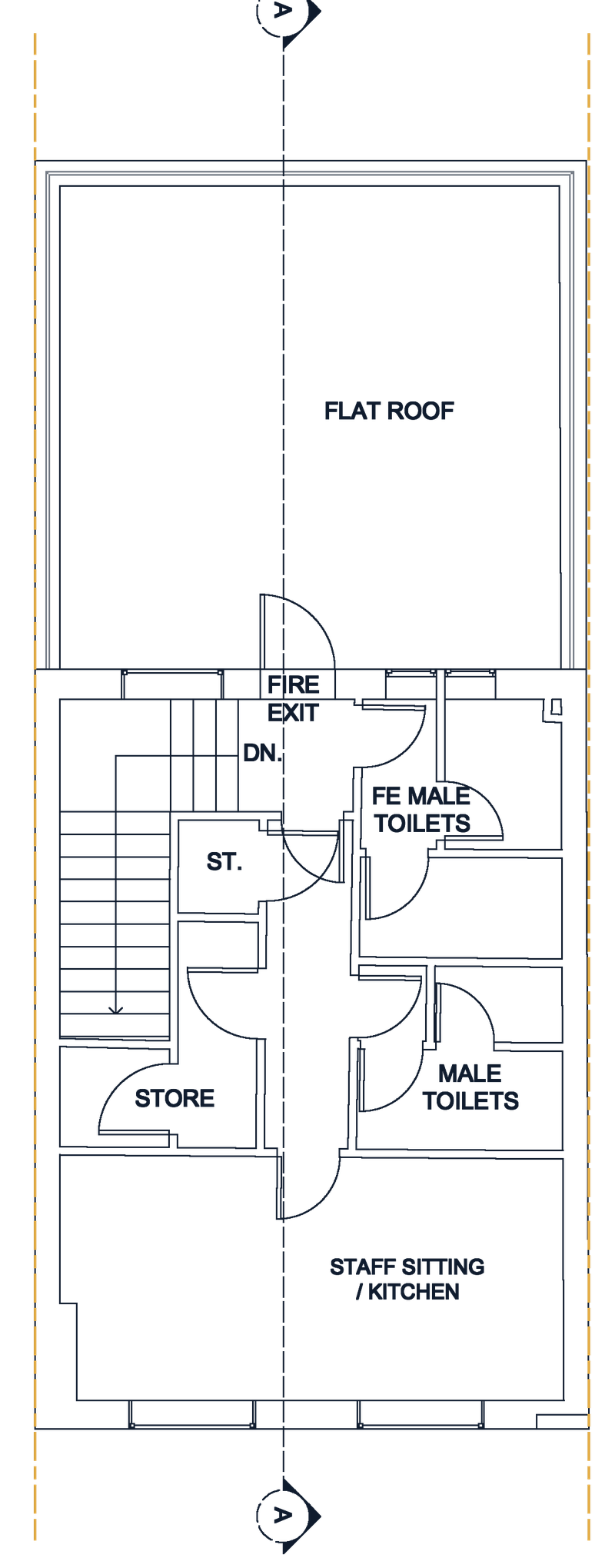

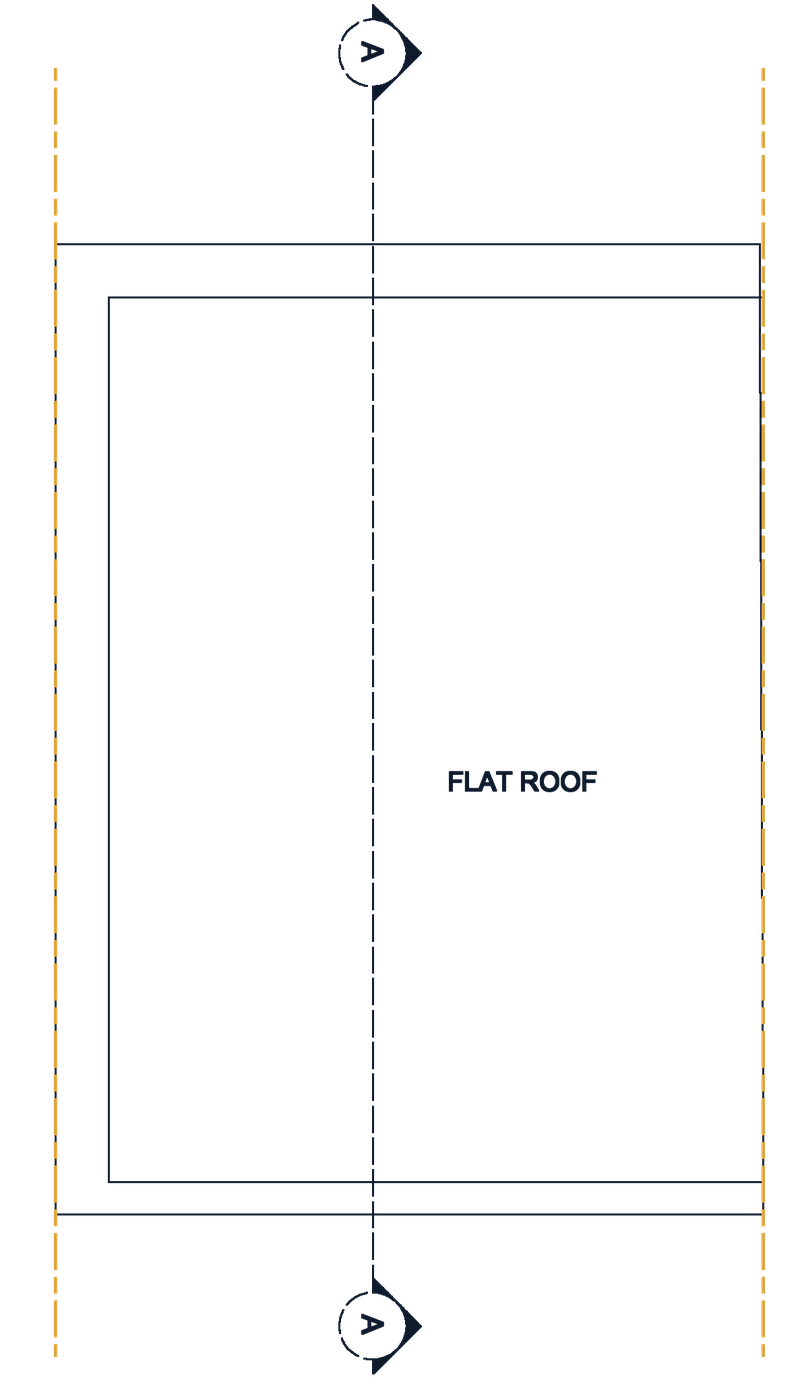

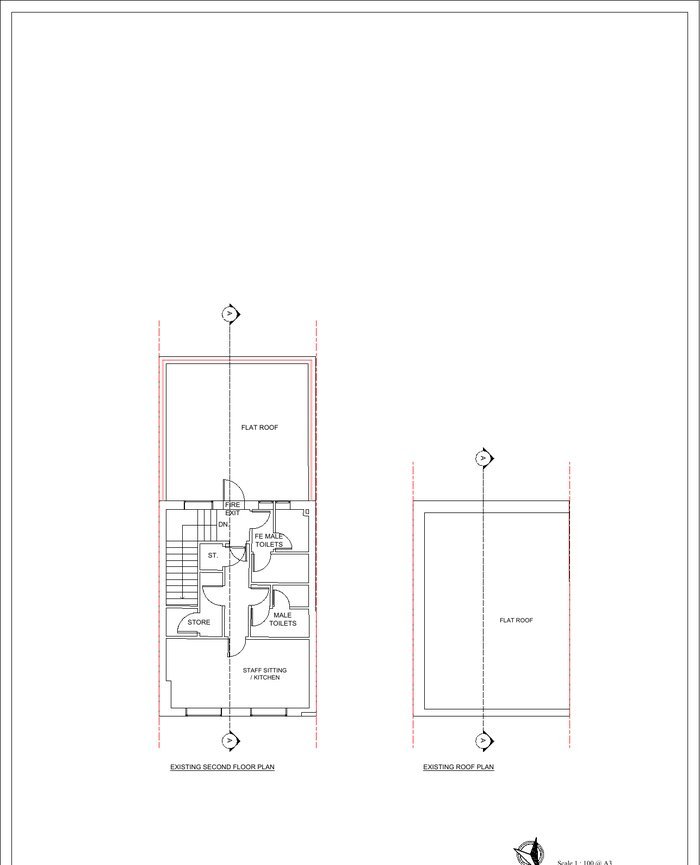

The top floor holds the staff kitchen, toilets and a store, under a flat roof.

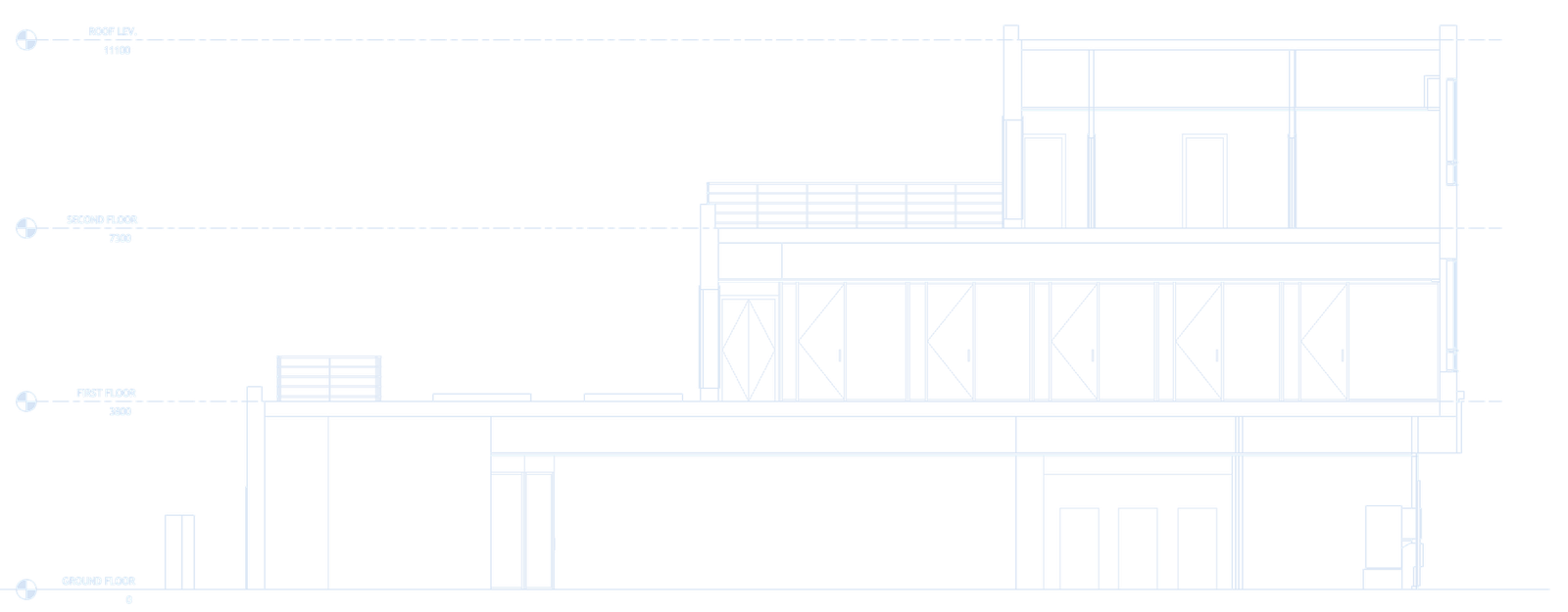

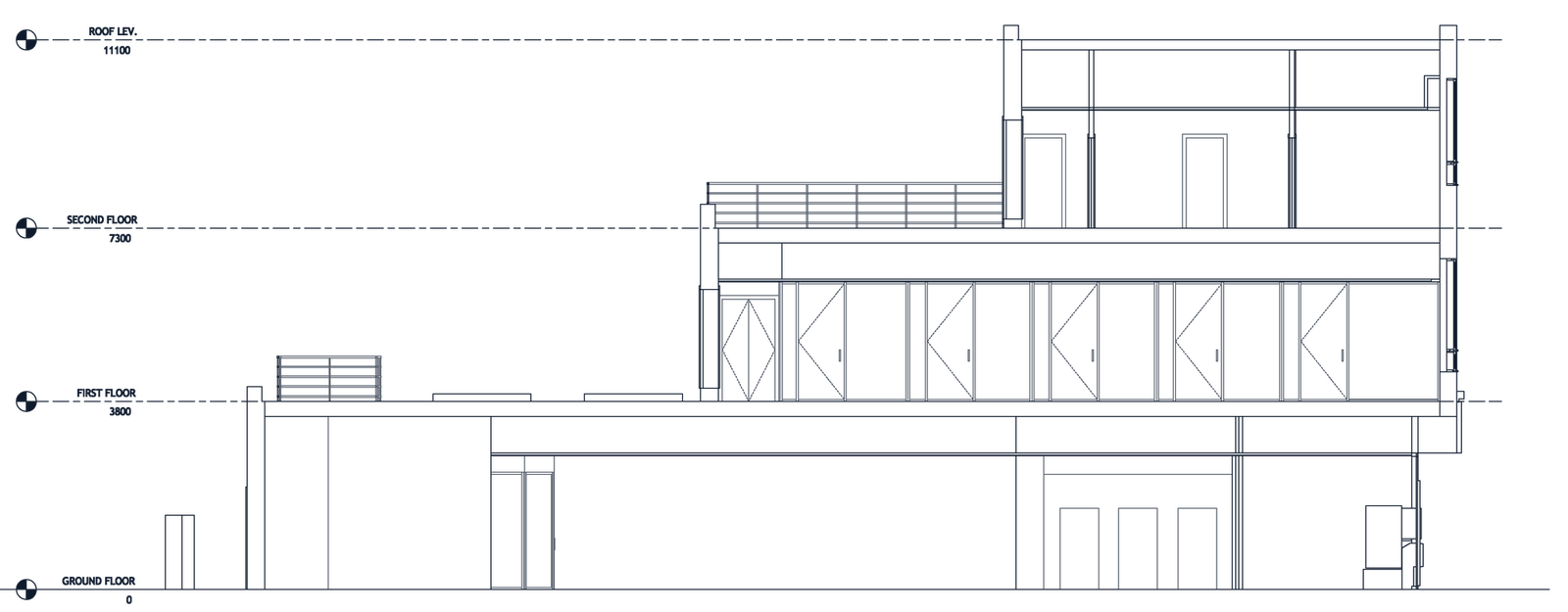

A cut through the full depth of the building, recording each floor level and the height of every storey.

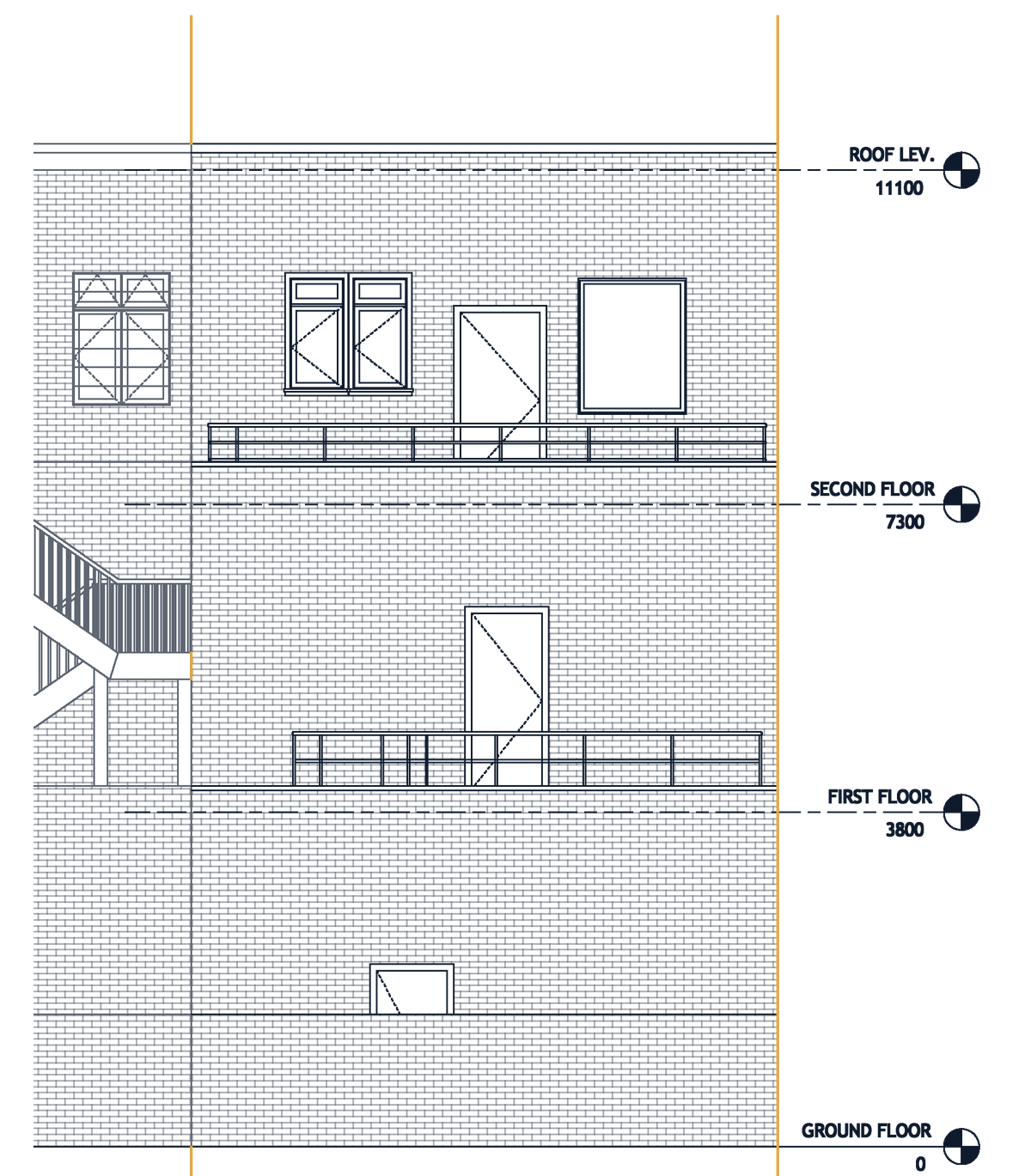

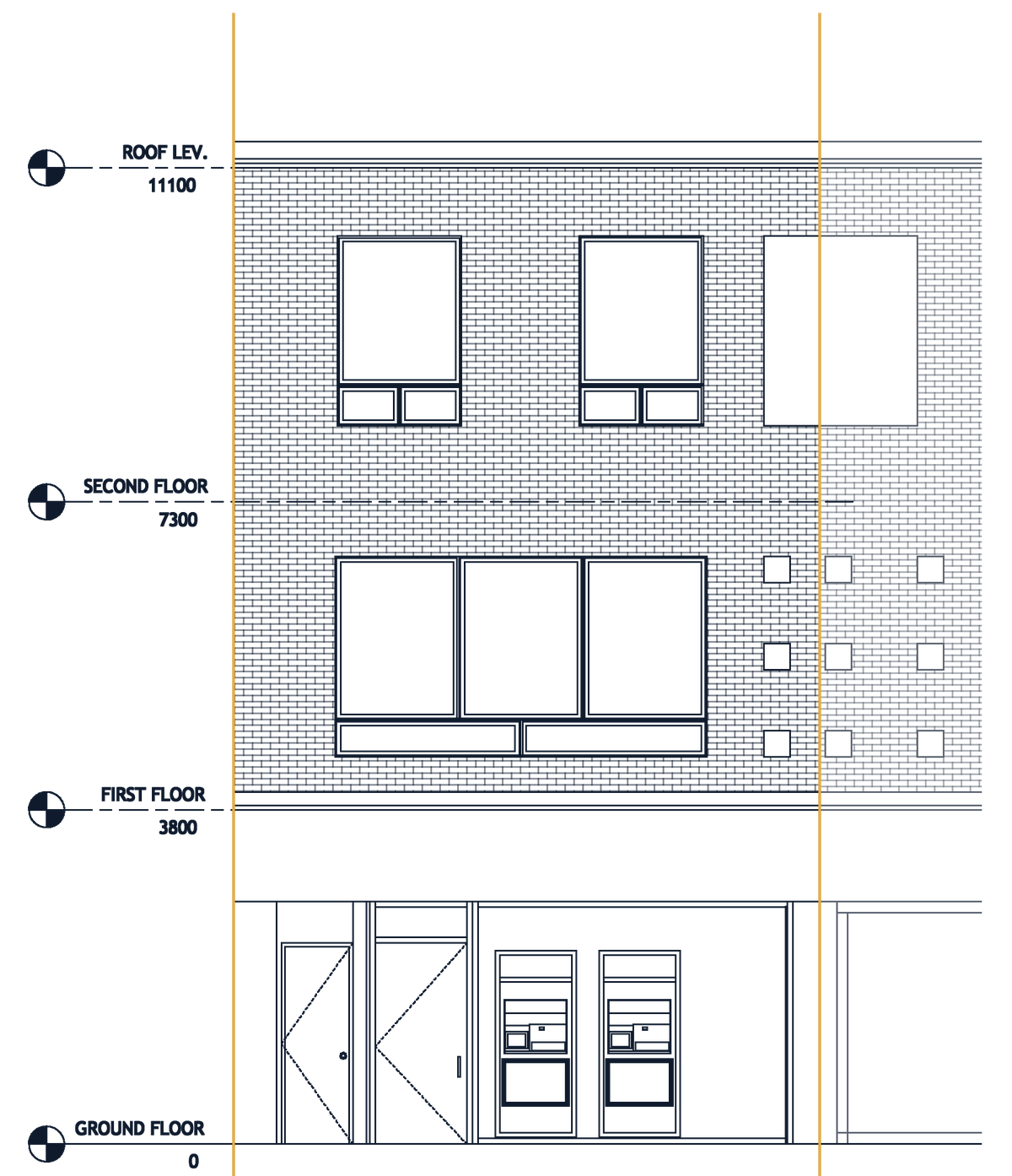

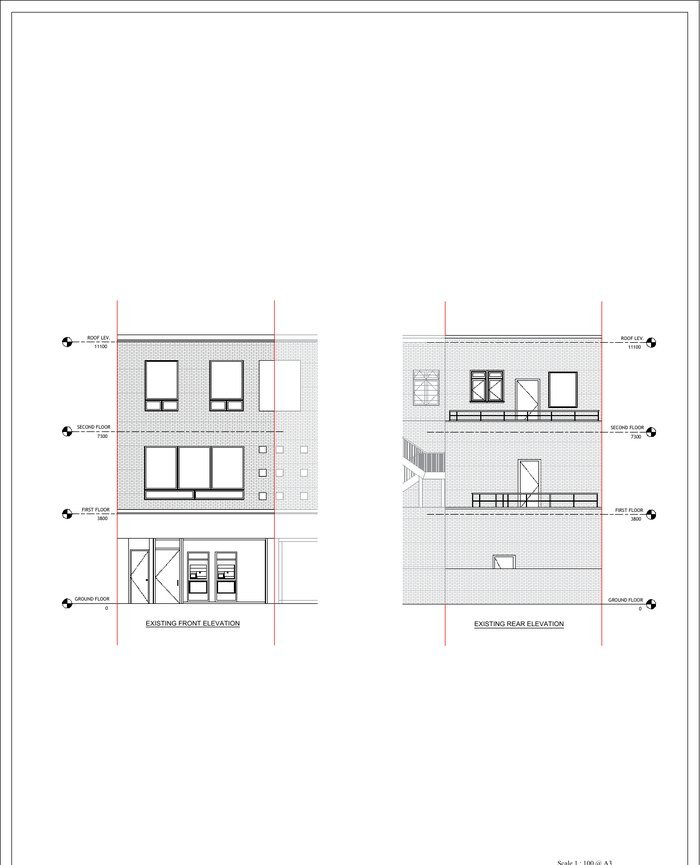

Front and rear faces drawn as built — brickwork, windows, the shopfront and every floor level.
Floor levels and storey heights taken on site, so whoever designs the next stage starts from real numbers.
A complete, scaled set of existing drawings — the base for planning, design and lease plans.
Accurate existing drawings to submit alongside the proposals.
The starting point for any extension or loft conversion design.
Clear floor plans for leases, lettings and Land Registry.
Reliable dimensions for contractors, designers and quotes.
Planning a change to a home, shop or office in London? It starts with a measured survey — and we can have yours drawn up.
