PROJECT INFORMATION
Precise Measured Survey & Existing Drawings – Clitterhouse Crescent NW2
PROJECT CONCEPT
Every successful design begins with clarity.

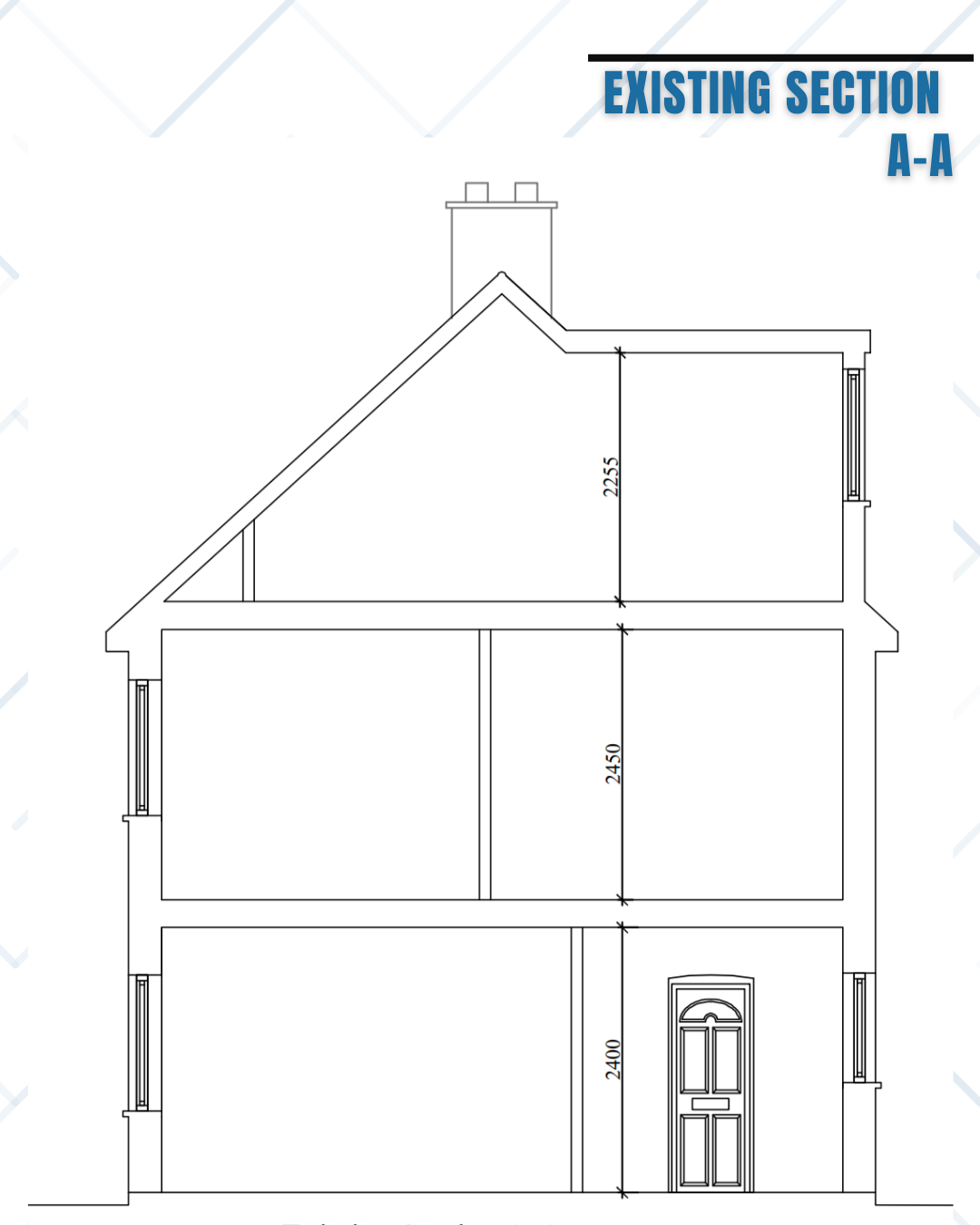

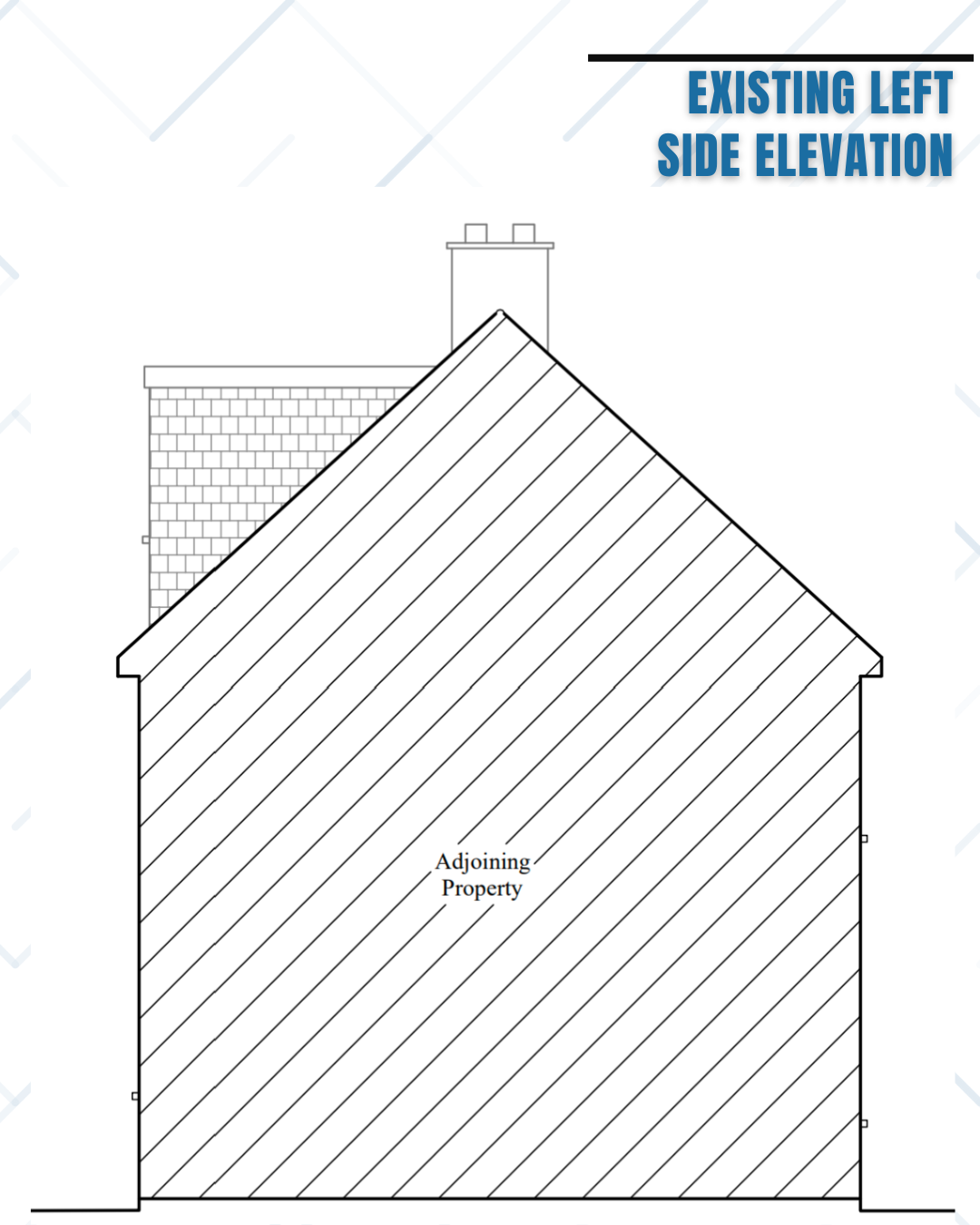

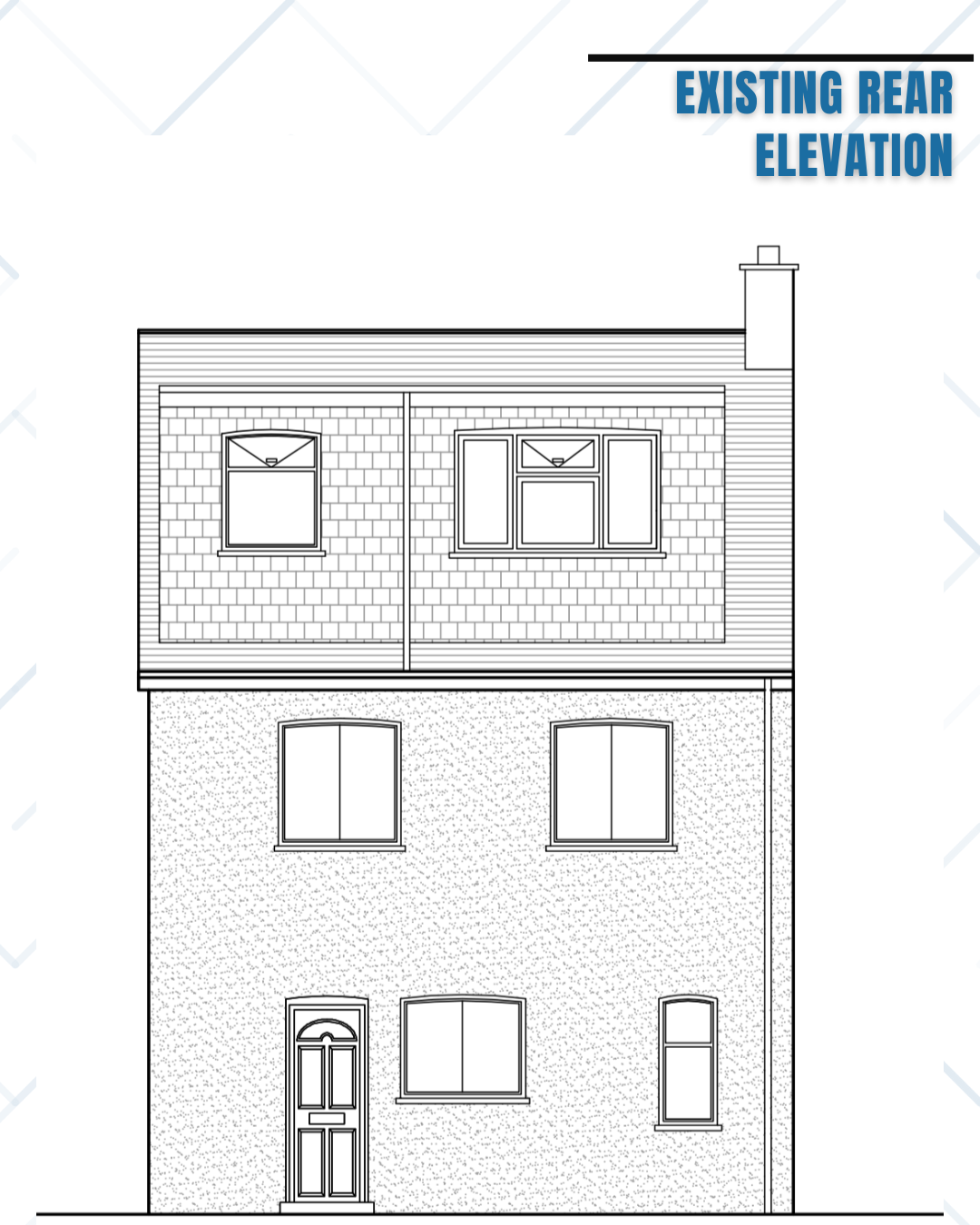

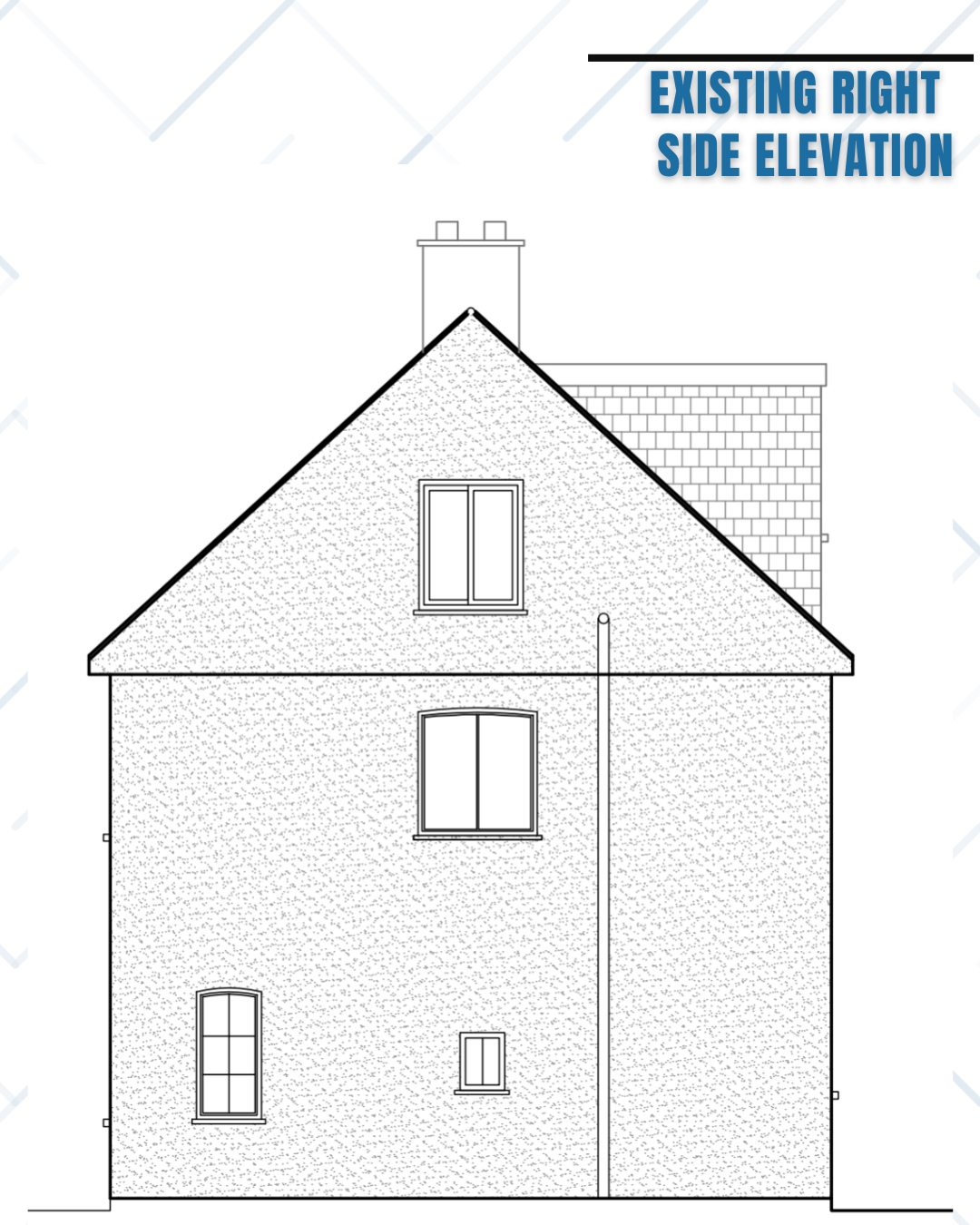

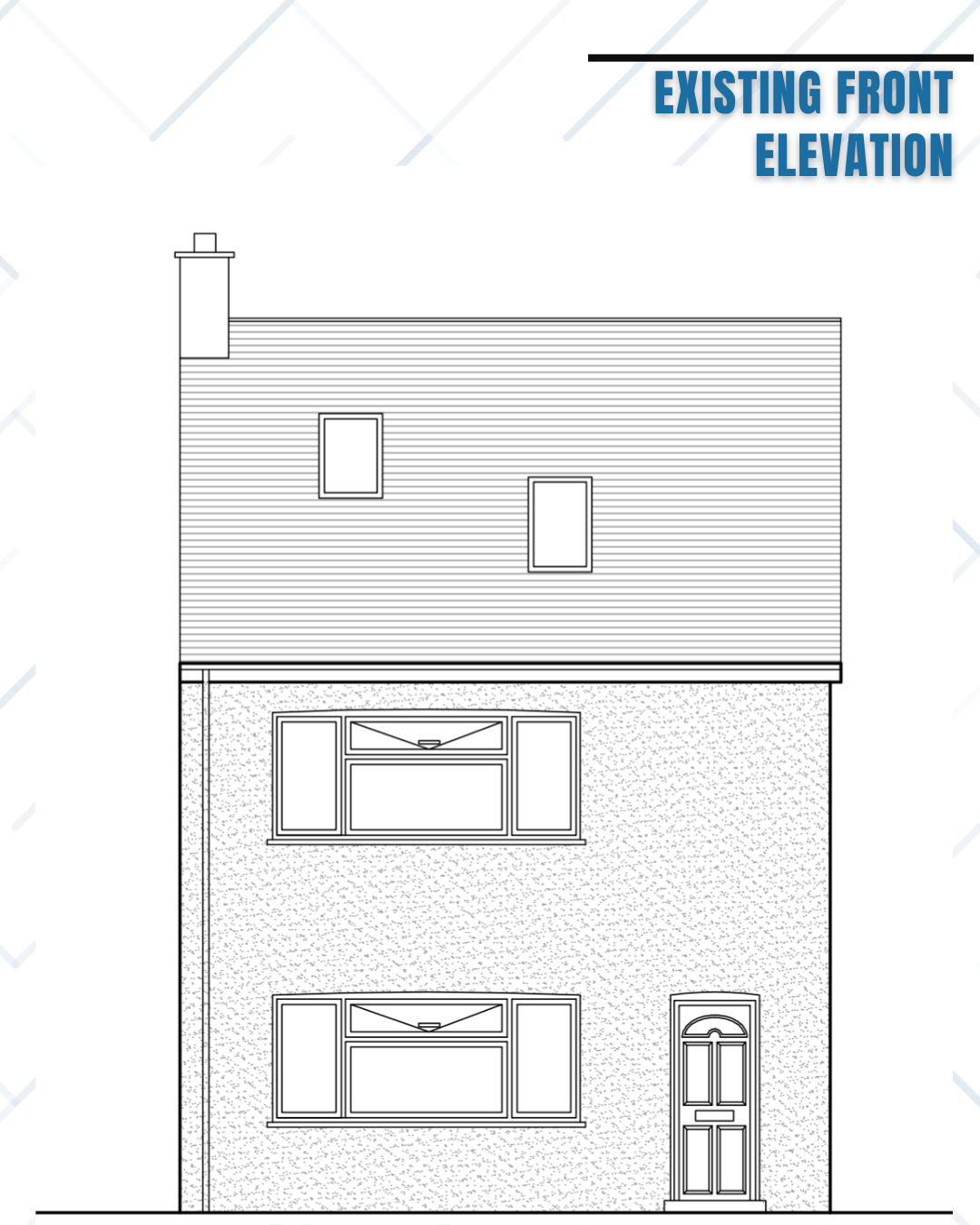

For this property at Clitterhouse Crescent, NW2 1DA, our team carried out a comprehensive measured survey to accurately document the building’s internal layout, structure, and external elevations.
The objective was simple: capture the property exactly as it exists today — no assumptions, no guesswork — and translate that data into reliable architectural drawings ready for planning, design, or refurbishment.
PROJECT DESCRIPTION
We completed a full measured survey at Clitterhouse Crescent, NW2, producing an accurate set of existing-condition drawings for a multi-level residential property.
The property comprises:

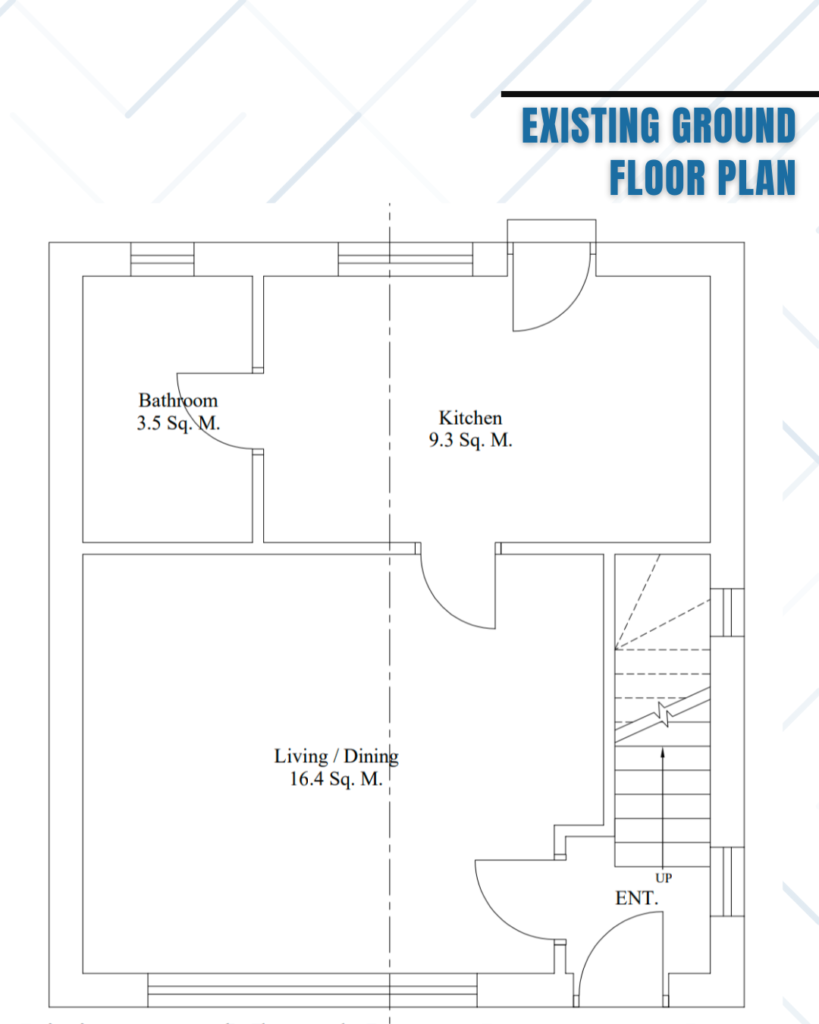

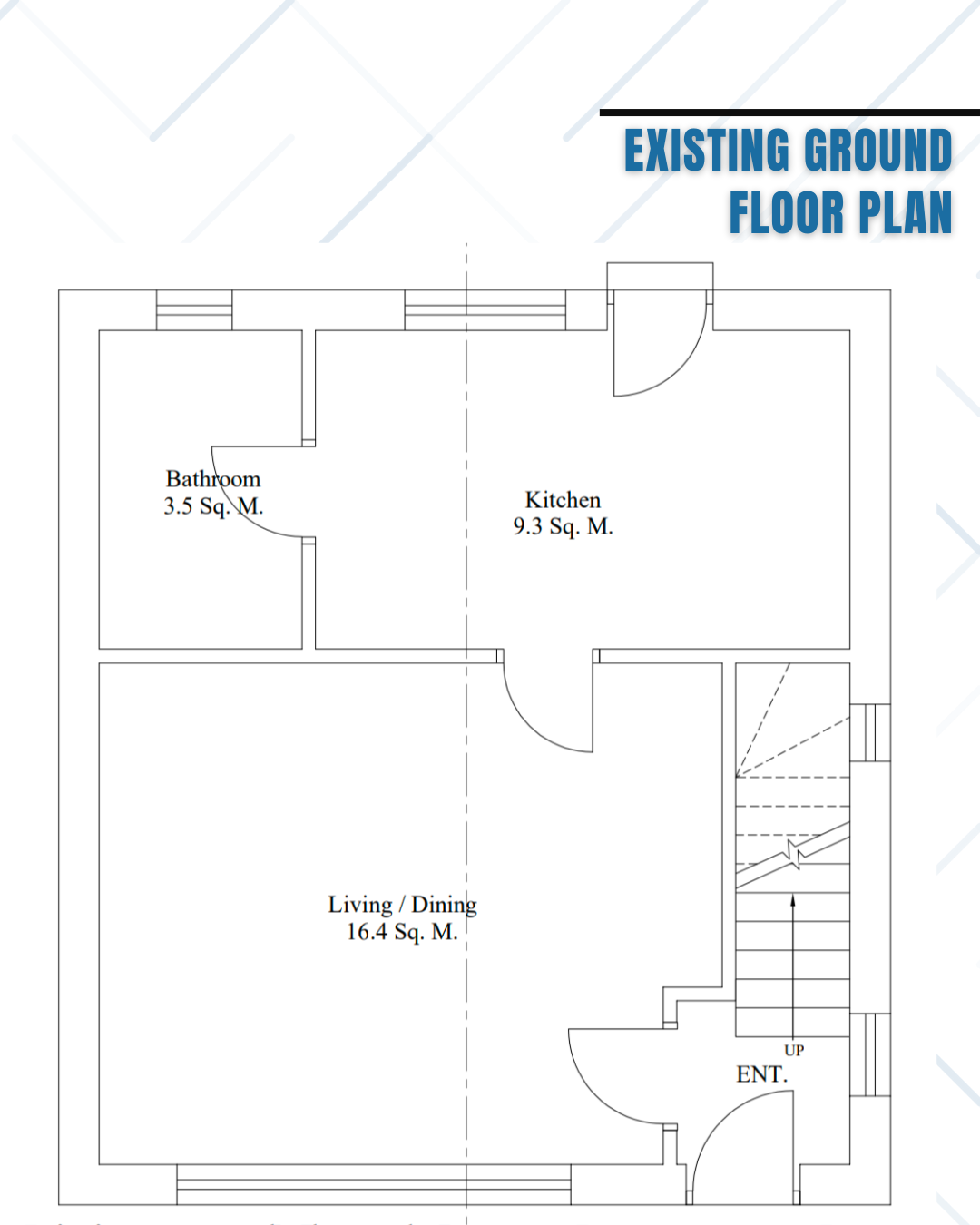

Ground floor living/dining area (16.4 sq.m)
Kitchen (9.3 sq.m)

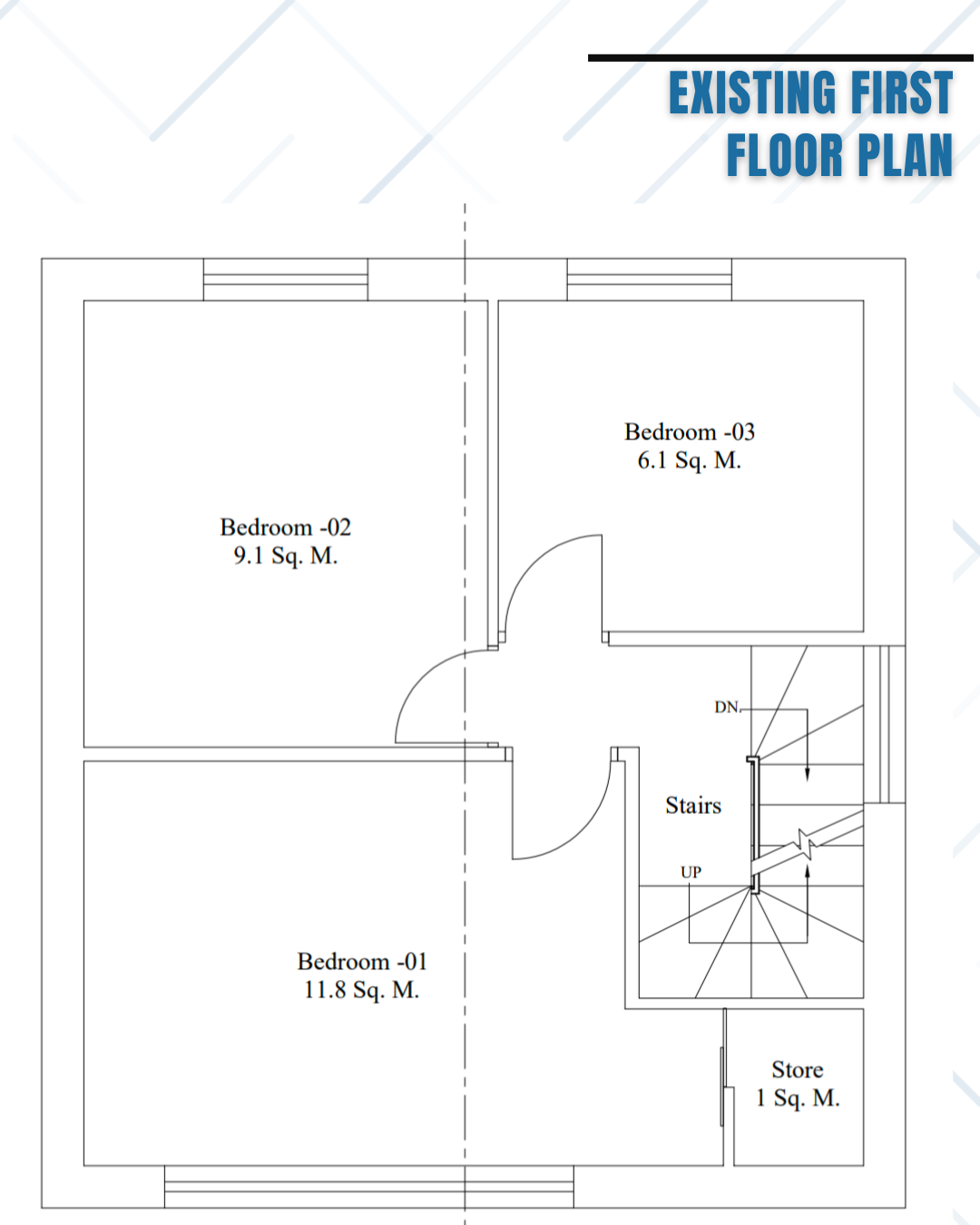

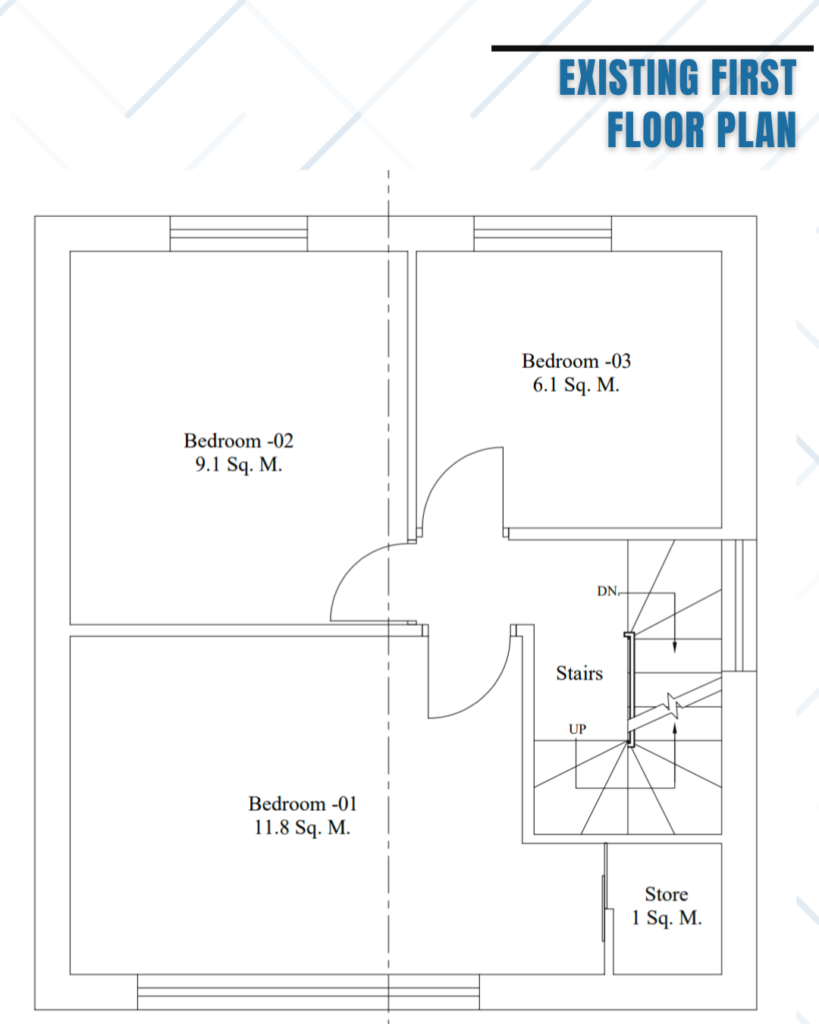

Three first-floor bedrooms

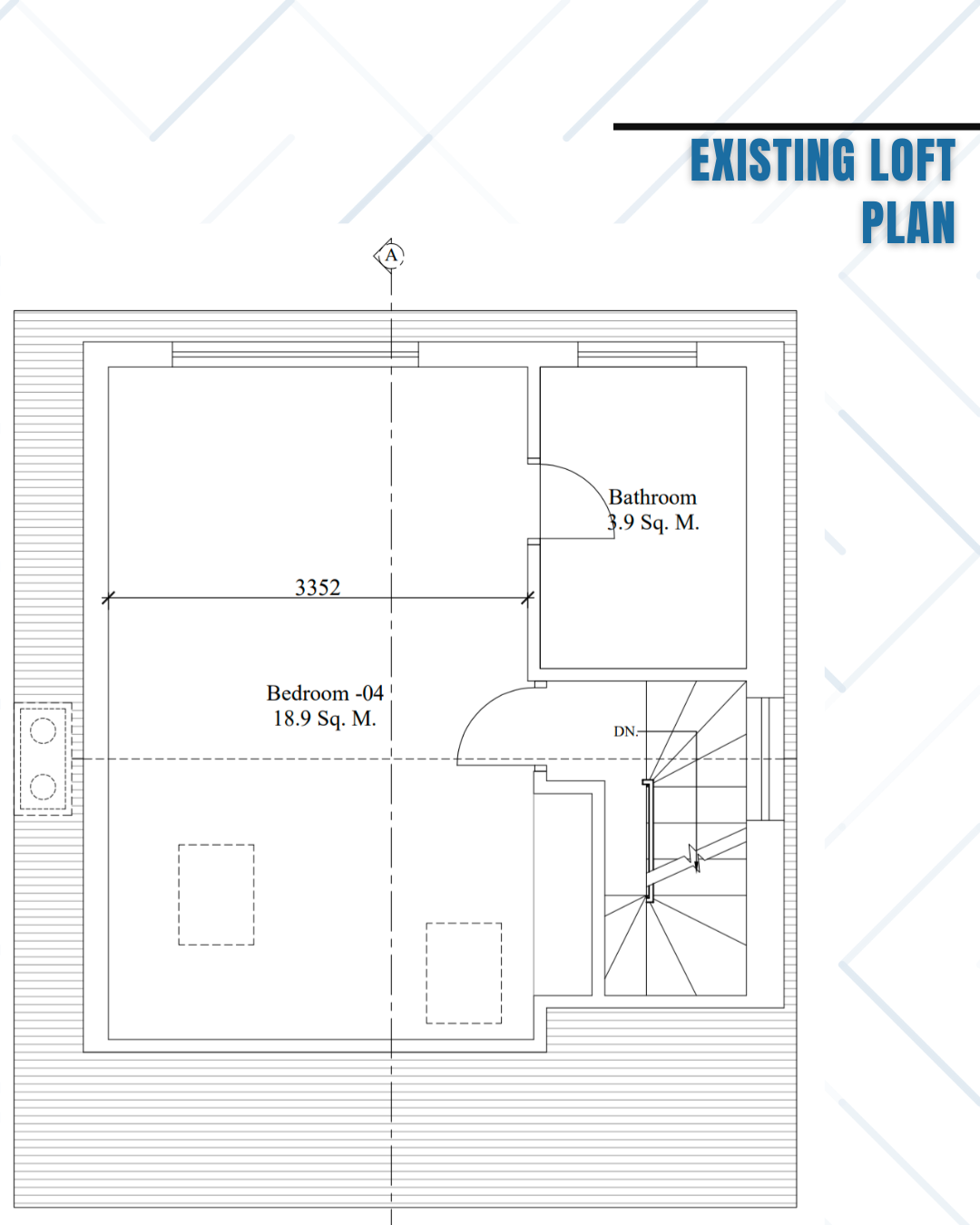

Loft bedroom (18.9 sq.m) with bathroom

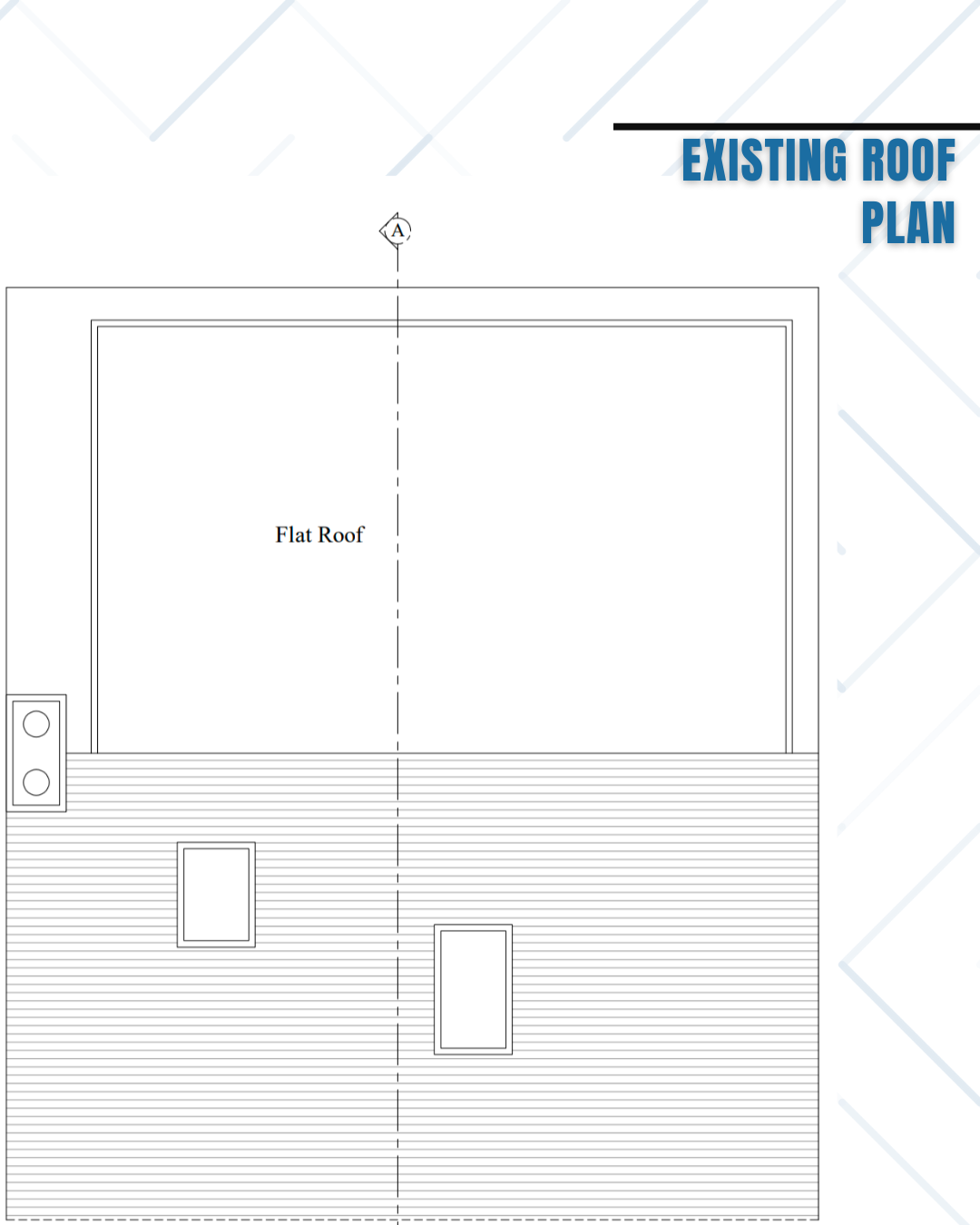

Full roof layout documentation
All drawings were prepared at 1:50 and 1:100 scale (A3), ensuring they are suitable for planning applications, architectural design development, and building regulation submissions.
This measured survey provides a clear and dependable foundation for any future extension, loft conversion, or internal reconfiguration at the property.
